ZadPad - Multi-purpose handheld analyzer with touch display
- 4,3" touch display, direct access to the most important functions
- High measurement accuracy by four 16-bit AD converters
- up to 1.6 MHz sampling rate, up to 8 measurement channels
- Automatic display of the sensors specific measured values

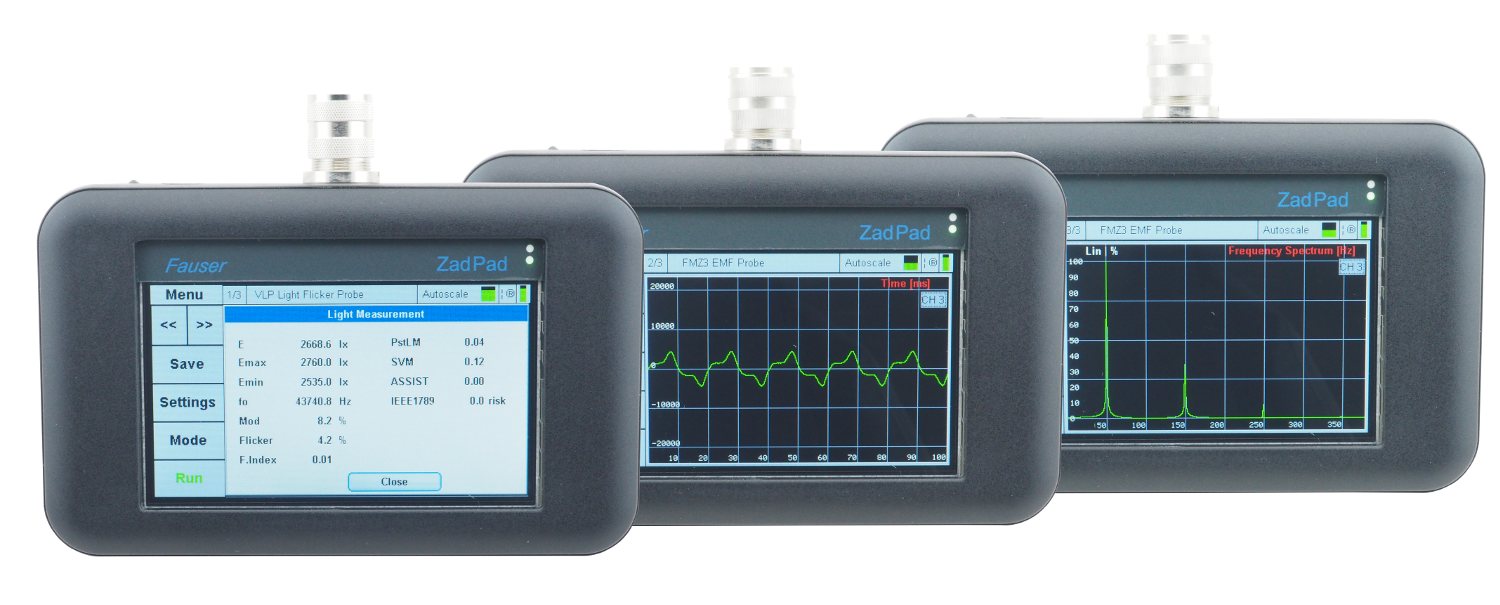

- Chart of the measurement signals in the time domain and frequency domain
- Integrated data logger and automatic creation of measurement protocols
- Data is stored on a integrated USB mass storage device
- Additional measurement probes for IR, UV measurement, electromagnetic fields EMF in development
- Dimensions 154 x 96 x 34 mm
Multi-purpose handheld analyzer with touch display
ZadPad is a measuring device for different measured values, selectable via the attached probes. Fast and precise data acquisition in connection with high-performance processing power offer extensive possibilities of data acquisition and analysis for a hand-held measuring device.
Also time domain and frequency domain analysis of the measurement signals is possible. The measurement data can be saved on the internal USB drive.
Light measurement
With the VL10 probe, the ZadPad is a professional flicker measuring device for development, test field and on-site measurement.
Suitable for luminaire manufacturers, lighting designers, end users and others.
The limit values for flicker PstLM and SVM required by the EU Ecodesign Regulation for light sources are displayed as standard.
- Photometer head matching to V(λ)
- Measurement range of illuminance: 1 lx ... 20,000 lx
- Display of fundamental frequency, percent of flicker, flicker index, modulation depth
- Evaluation procedures of flicker such as PstLM, SVM, ASSIT Mp and IEEE 1789
Measurement of electromagnetical fields
The FMZ3 field measuring probe measures low-frequency alternating electric and magnetic fields simultaneously and displays the field strength as an RMS and peak value.
- isotropic measurement of magnetic fields, didplay of B, Bx , By , Bz and Bpeak
- potential-free measurement of electromagnetical fields, Display of E and Epeak
- Measurement range 20000 nT, 2000 V/m
- resolution from 1 nT bzw. 0.1 V/m without switching the measurement range
Other probes for electromagnetical measurement:
- Multi-purpose probe FMZ30, measurement range up to 200 µT, 20 kV/m
- Isotropic, potential-free electric field probe EPLZ3
- Isotropic magnetostatic field probe BSZ3
- Electrostatics field probe ESZ
